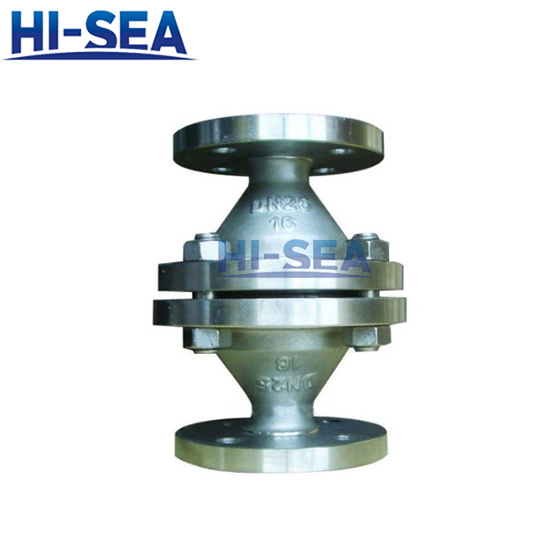

Pipe heat dissipation venting flame arresting

Description

Pipeline heat-dissipating venting flame arresting are usually installed in tanks and pipelines that transport or discharge flammable and explosive gases. They are used to prevent flammable gases, liquid flames and prevent tempering and cause explosions. Can be used in flares, heating combustion systems, petroleum gas recovery systems or other flammable gas systems.

Specification

DN	Inch	Width L/mm (1.6Mpa/1.0Mpa)	Height H/mm (1.6Mpa/1.0Mpa)
25	1	195	200
50	2	245	240
80	3	280	270
100	4	325	274
125	5	325	274
150	6	427	288
200	8	496	306
250	10	593	320

Model	ZHQ-R	Size	DN25-DN350 PN0.6-PN2.5
Body Material	CS 304 316 316L	Guide Rod	304 316 316L
Bolt /Nut	CS 304 316 316L	Gasket Seal	Graphite gasket Medal gasket PTFE
Explosion Group	BS 5501:IIA IIB IIC	Ambient Temper	CS：-30℃~+350℃ SS：-80℃~+350℃
Joint Type	Flange Threaded	Flange Standard	JB GB HG ANSI SH JIS
Manufacture Standard	GB5908-86 GB/T13347-1992	Coating	CS: paint SS: NO Paint

Features

It has good resistance to burning and has no tempering for 1 hour. It has good anti-explosion performance. It can prevent fire by 13 consecutive detonation performance tests. The shell hydraulic pressure test is qualified; the structure is reasonable, light weight and corrosion resistance. Easy to repair and easy to install.
