Pneumatic Quick Release Disc Towing Hook

Pneumatic Quick Release Disc Towing Hook

Application:

Pneumatic quick release disc towing hook is one common type of marine towing hooks, it is widely used to quick towing. Pneumatic quick release disc towing hook can be controlled through pneumatic release system. Pneumatic quick release disc towing hook realizes the remote control of the hook through the pneumatic air cylinder. We supply various types of marine towing hooks. For more information, please contact us.

Drawing of Pneumatic Quick Release Disc Towing Hook:

Drawing of Pneumatic Quick Release Disc Towing Hook:

S.W.L. (ton)	A	B	D	H	L	N	R
30	300	285	470	355	1278	180	60
50	395	360	470	405	1395	214	60
60	400	380	600	450	1628	220	80
80	410	400	600	466	1703	260	80
90,100	450	430	650	502.5	1915	328	88

Specification:

1. Type: Pneumatic Release Disc Type;

2. Control System: Pneumatic Release;

3. Usage: Quick Towing;

4. Safe Working Load: 30t, 50t, 60t, 80t, 90t, 100t;

5. Material: Steel;

6. Color: Yellow, Black, Red or as Required;

7. High Quality with Competitive Price;

9. Certificate: ABS, CCS, BV, DNV·LR, NK, etc..

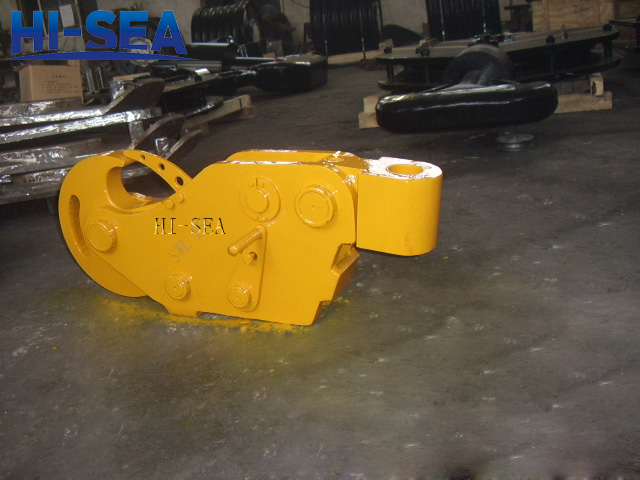

Pneumatic Quick Release Disc Towing Hook Ready to Ship:
