Triple Quick Release Mooring Hook

Triple Quick Release Mooring Hook

Application:

A triple quick release mooring hook is a specialized device used in marine applications for securely mooring ships or vessels to a fixed structure, such as a dock or a buoy. It is designed to provide a quick and efficient method of attaching and detaching mooring lines.
The triple quick release mooring hook consists of three individual hooks arranged in a triangular configuration, typically made of high-strength steel. Each hook is capable of independently engaging or disengaging from a corresponding mooring line. This design allows for enhanced flexibility and redundancy in the mooring system.
The operation of a triple quick release mooring hook is relatively simple. When a ship needs to be moored, the mooring lines are attached to the hooks. The hooks are then manually or remotely engaged with the mooring lines, securing the vessel in place. In case of an emergency or the need for a swift release, all three hooks can be simultaneously disengaged, allowing the mooring lines to be quickly released, and the vessel to move away from the mooring point.
The quick release mechanism of the hooks typically involves a combination of mechanical and hydraulic systems. These systems are designed to withstand high loads and provide reliable operation under various weather and sea conditions.
The benefits of using a triple quick release mooring hook include improved safety, increased efficiency, and reduced manpower requirements during mooring operations. In emergency situations, such as severe weather conditions or sudden vessel movements, the ability to swiftly release the mooring lines can help prevent accidents and minimize damage to both the vessel and the mooring infrastructure.
Overall, the triple quick release mooring hook is an advanced and robust solution for mooring vessels, offering enhanced reliability and flexibility compared to traditional mooring methods. Its design and functionality make it a valuable tool in ensuring the safety and efficiency of marine operations.

Main Technical Specification:

1. Number of Hooks: 3 Hooks;

2. Safe Working Load: 400kN to 1500kN;

3. Weight exclude Capstan: 707kg to 3586kg;

4. Swing angle of hook body in horizontal: -90° to +45°, -45° to +45°, ;-45° to +90°;

6. Swing angle of hook body in vertical: -5° to +45°.

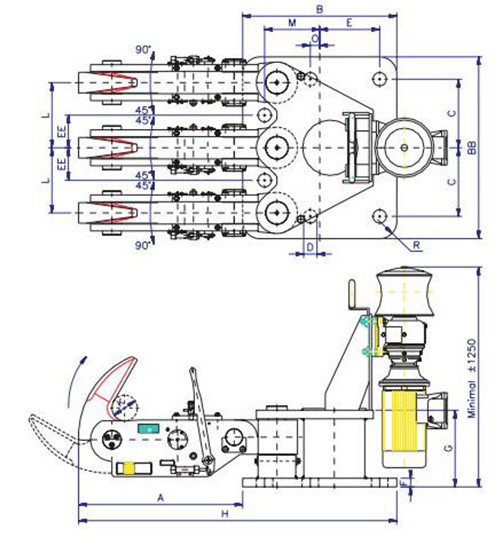

Drawing of Triple Quick Release Mooring Hook:

Parameters of Triple Quick Release Mooring Hook:

SWL (KN)	Weight (kg)	A	B	BB	C	D	E	EE	F	G	H	K	L	M	O	R	X
400	707	598	700	800	310	62	260	145	35	370	1296	96	290	275	-	90	6*M56
600	1268	863	800	900	335	70	310	162	45	407	1663	130	325	310	65	100	6*M64
750	1540	893	850	1000	375	78	325	175	45	417	1743	130	350	325	60	100	6*M72
1000	2144	959	900	1060	400	78	350	190	50	417	1859	150	380	322	55	100	6*M72
1250	2450	1030	900	1060	400	86	350	190	55	479	1930	150	380	322	55	100	7*M80
1500	3586	1235	1020	1200	475	96	385	212	55	499	2255	150	425	385	115	125	7*M90

Features of Triple Quick Release Mooring Hook:

1. Designed to withstand harsh marine environments;

2. Manual release, pneumatic or hydraulic release options;

3. Easy and safe release with either a slack or loaded mooring ropes;

4. Wide range of movement (horizontal and vertical);

5. Easy to install and maintain;

6. Protect the safety of vessel and operator;

7. Mooring load monitoring system for option;

8. Locking device to prevent accidental or unauthorized operation;

9. Integral capstan for option;

10. Certificate: ABS, CCS, BV, DNV·LR, NK, etc..

Triple Quick Release Mooring Hook in Factory:
