Description:

Offshore mooring chain is a kind of chains used to marine construction project. Grade R3S offshore mooring chains are made of steel 30Mn2, which is a kind of alloy steel. The tensile strength of material 30Mn2≥690Mpa. If you're interested in our products, please do not hesitate to contact us. We're looking forward to your inquiry.

Anchor Chain Application:

An anchor chain is used to secure a vessel to the seabed when it is at anchor. The chain is attached to the anchor on one end and to the vessel on the other.

The main purpose of the anchor chain is to provide a strong, heavy and flexible link between the anchor and the vessel, allowing the anchor to hold fast to the seabed and prevent the vessel from drifting or being blown away by the wind or current.

When selecting an anchor chain, the size and weight of the chain should be appropriate for the size and weight of the vessel, and the expected weather conditions. A chain that is too small or lightweight may not be strong enough to hold the vessel in place during heavy weather, while a chain that is too heavy or thick may be difficult to handle and store.

The anchor chain should be inspected regularly to ensure that it is in good condition, with no signs of corrosion, wear, or damage. Proper maintenance and care of the chain are essential for its safe and effective use.

Drawing of R3S Mooring Chain:

Parameters of R3S Mooring Chain:

R3S Mooring Chain Dia. (mm)	Studless Tension (kN)	Stud Tension (kN)	Breaking Load (kN)	Studless Weight (kg/m)	Stud Weight (kg/m)
34	831	859	1189	23.35	25.32
36	928	960	1327	26.18	28.39
38	1030	1065	1473	29.17	31.63
40	1136	1176	1626	32.32	35.04
42	1248	1291	1786	35.63	38.64
44	1364	1411	1952	39.11	42.40
46	1485	1536	2124	42.74	46.35
48	1610	1666	2304	46.54	50.46
50	1740	1800	2490	50.50	54.75
52	1875	1940	2683	54.62	59.22
54	2014	2083	2882	58.90	63.87
56	2157	2231	3086	63.35	68.68
58	2304	2384	3297	67.95	73.68
60	2456	2541	3514	72.72	78.84
62	2612	2702	3737	77.65	84.19
64	2771	2867	3966	82.74	89.71
66	2935	3036	4200	87.99	95.40
68	3103	3210	4440	93.40	101.27
70	3274	3387	4686	98.98	107.31
73	3539	3661	5064	107.65	116.71
76	3812	3943	5454	116.68	126.49
78	3998	4136	5721	122.90	133.24
81	4284	4432	6130	132.53	143.69
84	4578	4735	6550	142.53	154.53
87	4879	5047	6981	152.89	165.76
90	5187	5366	7423	163.62	177.39
92	5397	5583	7723	170.97	185.36
95	5717	5914	8180	182.31	197.65
97	5934	6138	8491	190.06	206.06
100	6264	6480	8964	202.00	219.00
102	6489	6712	9285	210.16	227.85
105	6830	7065	9774	222.71	241.45
107	7061	7304	10104	231.27	250.73
111	7530	7789	10775	248.88	269.83
114	7888	8160	11288	262.52	284.61
117	8251	8536	11808	276.52	299.79
120	8620	8917	12335	290.88	315.36
122	8868	9174	12690	300.66	325.96
124	9118	9433	13048	310.6	336.73
127	9498	9825	13591	325.81	353.23
130	9881	10222	14140	341.38	370.11
132	10139	10488	14509	351.96	381.59
137	10791	11163	15442	379.13	411.04
142	11452	11847	16389	407.31	441.59
147	12123	12541	17348	436.50	473.24
152	12800	13242	18318	466.70	505.98
157	13485	13950	19297	497.91	539.81
162	14175	14664	20284	530.13	574.74
165	14591	15094	20880	549.95	596.23
168	15008	15526	21477	570.12	618.11
171	15427	15959	22077	590.67	640.38
175	15987	16538	22877	618.63	670.69
178	16407	16973	23479	640.02	693.88
180	16688	17263	23881	654.48	709.56
182	16968	17554	24282	669.10	725.42
185	17390	17989	24885	691.35	749.53
188	17810	18425	25487	713.95	774.03
191	18231	18860	26089	736.92	798.93
194	18651	19294	26690	760.25	824.23
197	19070	19728	27290	783.94	849.92
200	19488	20160	27888	808.00	976.00
205	20183	20879	28882	848.91	920.35
210	20872	21592	29869	890.82	965.79

Product Details:

1. Type: Mooring Chain

2. Diameter: 34mm-210mm

3. Grade: R3S

4. Certificate: ABS, LR, BV, NK, DNV·GL , KR, IRS, RS, CCS

5. Application: Deep-sea Development Facilities.

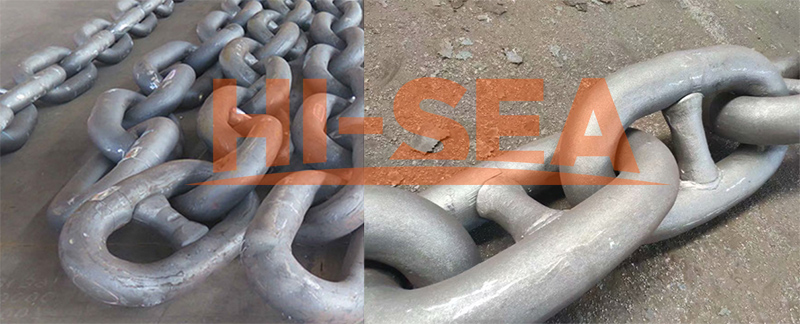

R3S Mooring Chain in Factory:
