Ship Embarkation Ladder with Aluminium Steps

Ship Embarkation Ladder with Aluminium Steps

Description:

Embarkation ladder is used for crews and passengers to get in and out from survival craft during the emergency situation. Steps of this type of ladder are made of aluminum except the last 4 steps are made of rubber. Hand holds must be required to ensure a safe passage from the deck on to the head of embarkation ladders. Requirements of ISO5489-1986 and CB/T428-93 standard are met. Optional certificates, such as CCS, NK, BV, RINA, DNV.GL, LR, ABS, etc. are provided according to clients’ requirements.

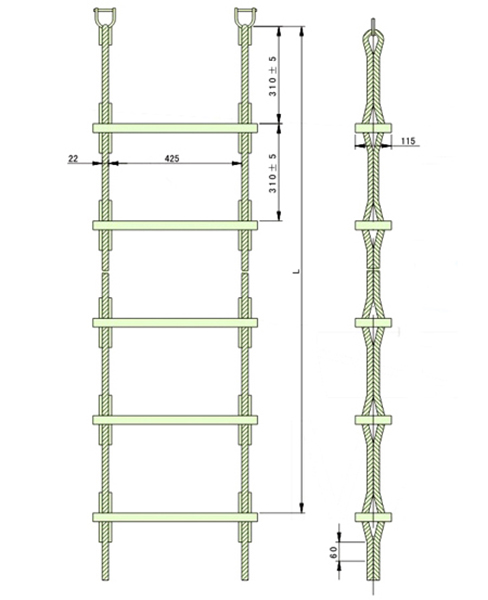

Drawing:

Specification:

Type	Number of steps n	Length of rope ladder L (mm)	Weight (kg)
A	10	3100	25.86
	15	4650	33.47
	20	6200	41.08
	25	7750	48.69
	30	9300	56.30
	35	10850	63.91
	40	12400	71.52
	45	13950	79.13
	50	15500	86.74
	55	17000	94.35
	60	18500	101.96
	n+5	L+1500	+7.61

Optional Certificates: CCS, NK, BV, RINA, DNV.GL, LR, ABS
