CBT 3468-1992 Marine Mooring Wire Rope Reel

Description:

CBT 3468-1992 marine mooring wire rope reel is used to store wire ropes. It can not be used for towing or stranded cables. CBT 3468-1992 marine mooring wire rope reel has four different types: type A, type AW, type B, and type C. Except type AW, all the other three types have crank handle. Please refer to the drawing and corresponding product parameters. For more information, please feel free to contact us, we’ll reply you soon.

CBT 3468-1992 Marine Mooring Wire Rope Reel List:

Marine Mooring Wire Rope Reel

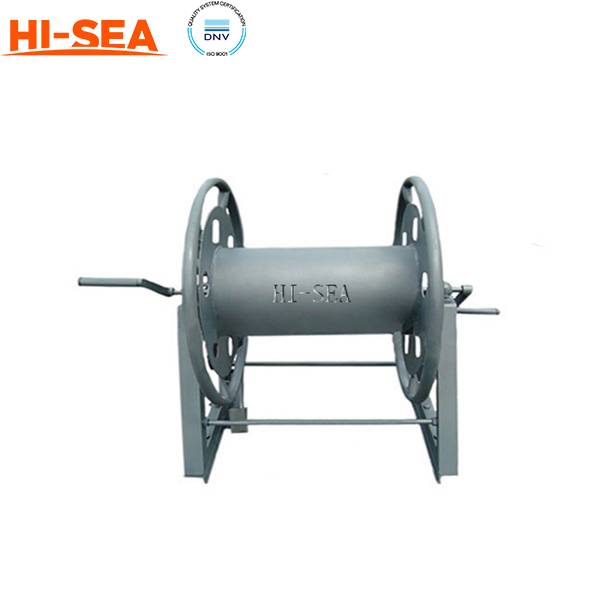

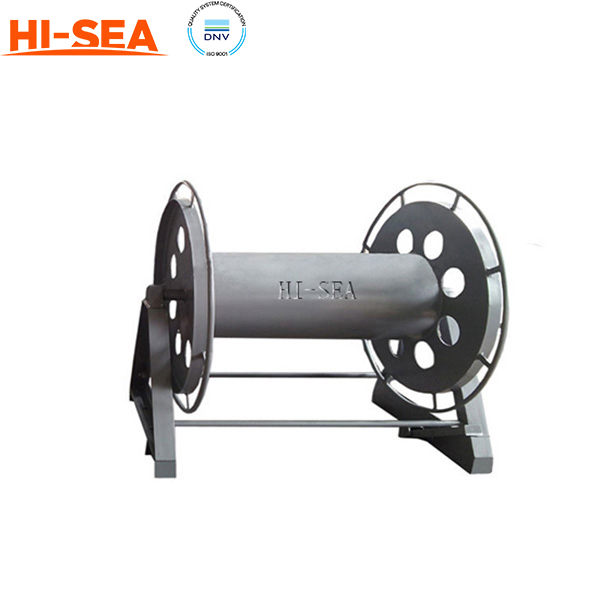

CBT 3468-1992 Marine Mooring Wire Rope Reel Type AW	CBT 3468-1992 Marine Mooring Wire Rope Reel Type A

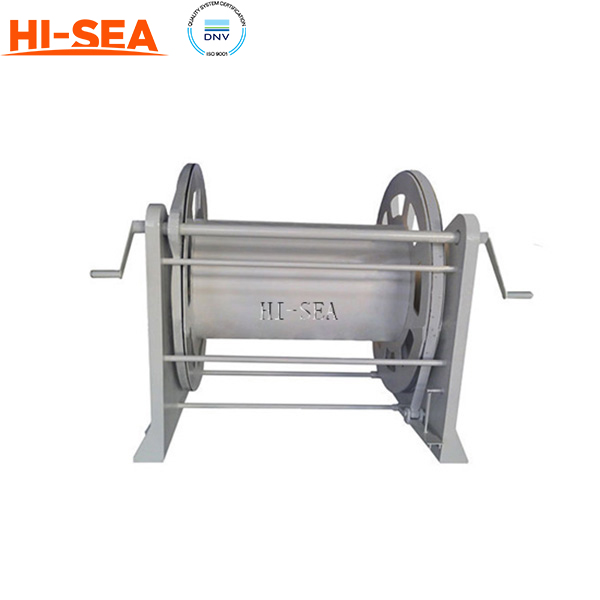

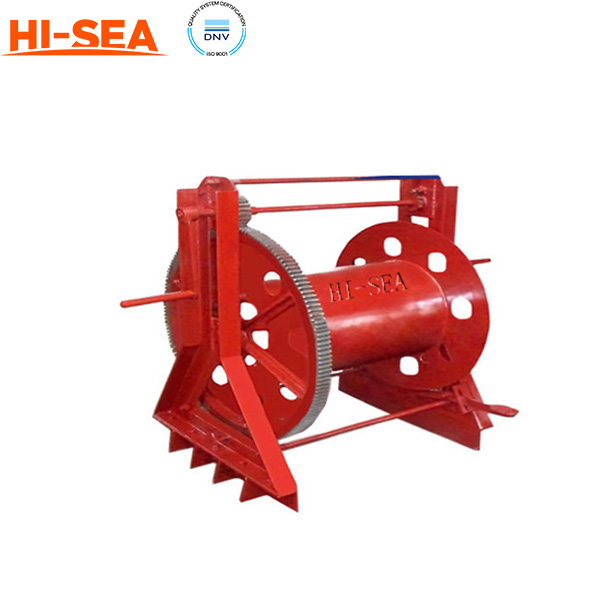

CBT 3468-1992 Marine Mooring Wire Rope Reel Type B	CBT 3468-1992 Marine Mooring Wire Rope Reel Type C

Features of CBT 3468-1992 Marine Mooring Wire Rope Reel:

1. Application: Store marine mooring wire ropes;

2. Model Type: Type A, Type B, Type C, Type AW;

3. Applicable Wire Ropes Max. Diameter: 56 mm;

4. Max. Length of Steel Wire: 300 m

5. Bolts Quantity: 6~14

6. Certificate: ABS, CCS, BV, DNV·GL, NK, etc.

7. Customized size is available.

Marine Mooring Reel after Painted:
