CBT 498-1995 Marine Mooring Fiber Rope Reel
Description:
CBT 498-1995 marine mooring fiber rope reel is a common type of marine mooring fiber ropes storage device. It is applicable to fiber ropes on all ships types. For more specific parameters, please check the following data sheet.
Features of CBT 498-1995 Marine Mooring Fiber Rope Reel:
1. Application: Store fiber ropes;
2. Applicable dia. of fiber ropes: 28mm~72 mm;
3. Applicable fiber ropes length: 140m~220 m;
4. Anchor bolt dia.: M16;
5. Anchor bolt Qty.: 8,10,12;
6. Material: Cast steel and carbon steel.

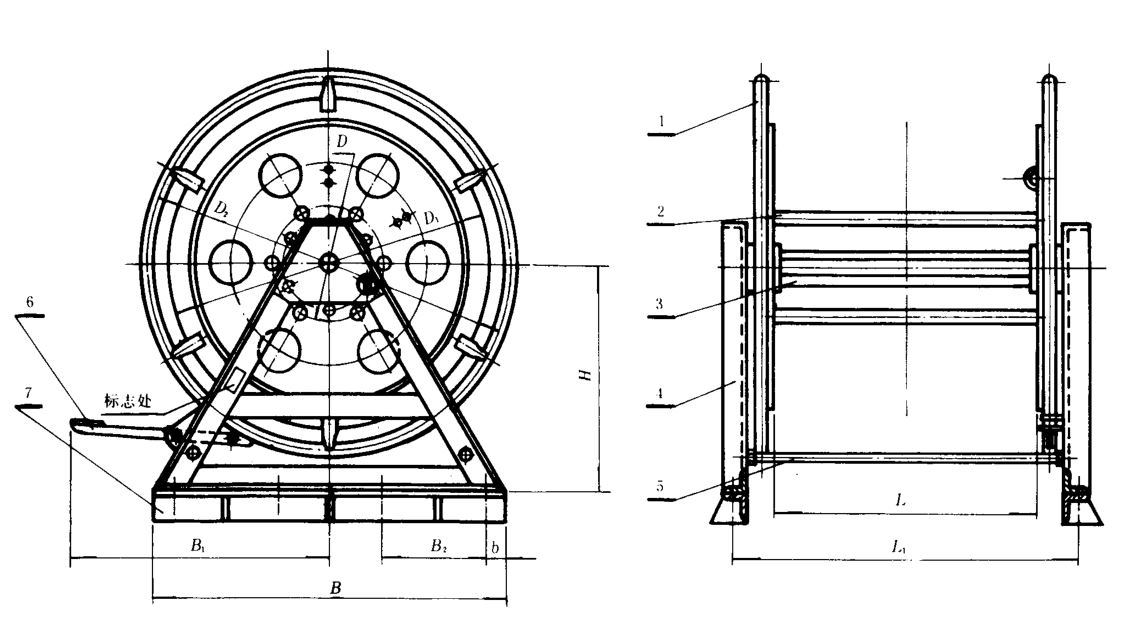

Drawing of CBT 498-1995 Marine Mooring Fiber Rope Reel:
Parameters of CBT 498-1995 Marine Mooring Fiber Rope Reel:
Nominal
Size
(mm)
Dia of Fiber Rope
(mm)
Length
Range
(m)
D
(mm)
D1
(mm)
D2
(mm)
L
(mm)
L1
(mm)
B
(mm)
B1
(mm)
H
(mm)
Anchor Bolt
Weight
Bolt
Dia.
Qty
b
B2
(kg)
30
28~30
140~220
190
650
820
750
930
650
630
520
M16
8
40
190
85.1
34
32~34
160~220
190
650
820
860
1046
650
630
520
40
190
89.1
38
36~38
170~220
190
650
820
880
1056
650
630
520
40
190
93.1
42
40~42
170~220
255
810
980
850
1056
820
650
575
10
40
185
118.5
46
44~46
180~220
255
810
980
930
1126
820
650
575
40
185
122.5
50
48~50
180~220
325
970
1140
910
1108
980
800
655
40
225
140.3
54
52~54
190~220
325
970
1140
930
1128
980
800
655
40
225
145.3
60
56~60
190~220
405
1150
1320
905
1108
1140
880
745
12
40
212
182.6
72
64~70~72
200~220
490
1330
1500
920
1132
1310
1030
830
40
246
216.1
Material of Main Parts:
Part
name
Material
Category
Mark
Standard
Bracket
Carbon Steel
Q235A
GB 700-88
Base
Reel
Axis
Fine Carbon Steel
20
GB 699-88
Inspection Rules:
1. The roller bracket and the base are connected by bolts, and the base and the deck are welded and fixed;
2. The core of the reel is perpendicular to the left and right side panels;
3. The reel should be flexible, balanced and reliable;
4. Parts should be clean and free of defects such as pits, burrs, sharp corners and cracks;
5. Steel parts should be anti-rusted to remove scale, rust and other contaminants;
6. After cleaning the surface, apply anti-rust primer. After loading on ship, apply a primer layer and a top coat;
7. Rotating parts should be greased when the reel is shipped from the factory.

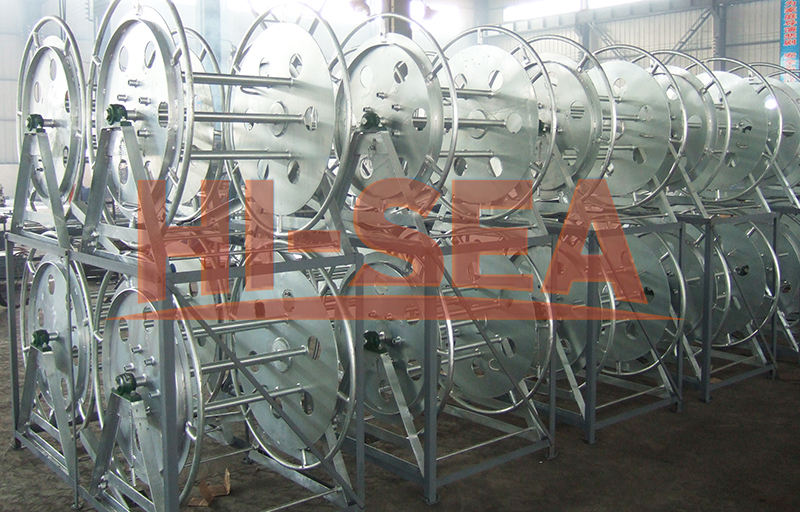

CBT 498-1995 Marine Mooring Fiber Rope Reel in Factory:
