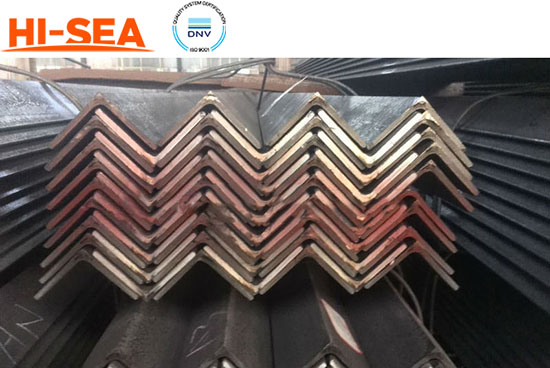

Chinese Standard Equal Leg Angles
Application:
Angle steels are widely used as main structure in shipbuilding, building structure or bridges and etc. The equal leg angles are also known as “L-shaped steel”. There are three types of steel angles: equal leg angles, unequal leg angles, unequal and thickness angles. And this kind of Chinese standard equal leg angles are equal side and equal thickness, which are produced by Chinese top steel mills meanwhile they meet the standard GB/T 706-2008. The material can be as follows: CCSA, CCSB, CCSD, CCSE, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40, Q235, Q345.
We are able to provide you a complete range of dimensions. If you have any specific requirements, we are able to customize products for you. Besides, we can provide Chinese standard steel angles, American standard steel angles, European standard steel angles or other special coating steel angles. More details, welcome to contact us!
Features of Chinese Standard Equal Leg Angles:
• High quality, trustworthy products
• A full, diverse selection of materials, such as marine steel, carbon structural steel, low carbon alloy steel.
• A wide range of dimensions,with the range of L2#~L25#
• Produced by excellent steel mills with strict quality management
• Precision-made, reliable, economical
Dimensions of Chinese Standard Equal Leg Angles:
|
Model |
Sectional Dimensions (mm) |
Sectional Area cm2 |
Nominal Weight kg/m |
||
|
b |
d |
r |
|||
|
2 |
20 |
3 |
3.5 |
1.132 |
0.889 |
|
4 |
1.459 |
1.145 |
|||
|
2.5 |
25 |
3 |
1.432 |
1.124 |
|
|
4 |
1.859 |
1.459 |
|||
|
3.0 |
30 |
3 |
4.5 |
1.749 |
1.373 |
|
4 |
2.276 |
1.786 |
|||
|
3.6 |
36 |
3 |
2.109 |
1.656 |
|
|
4 |
2.756 |
2.163 |
|||
|
5 |
3.382 |
2.654 |
|||
|
4 |
40 |
3 |
5 |
2.359 |
1.852 |
|
4 |
3.086 |
2.422 |
|||
|
5 |
3.791 |
2.297 |
|||
|
4.5 |
45 |
3 |
2.659 |
2.088 |
|
|
4 |
3.486 |
2.736 |
|||
|
5 |
4.292 |
3.369 |
|||
|
6 |
5.076 |
3.985 |
|||
|
5 |
50 |
3 |
5.5 |
2.971 |
2.332 |
|
4 |
3.897 |
3.059 |
|||
|
5 |
4.083 |
3.770 |
|||
|
6 |
5.688 |
4.465 |
|||
|
5.6 |
56 |
3 |
6 |
3.343 |
2.624 |
|
4 |
4.390 |
3.446 |
|||
|
5 |
5.415 |
4.251 |
|||
|
6 |
6.420 |
5.040 |
|||
|
7 |
7.404 |
5.812 |
|||
|
8 |
8.367 |
6.568 |
|||
|
6 |
60 |
5 |
6.5 |
5.829 |
4.576 |
|
6 |
6.914 |
5.427 |
|||
|
7 |
7.977 |
6.262 |
|||
|
9 |
9.020 |
7.081 |
|||
|
6.3 |
63 |
4 |
7 |
4.978 |
3.907 |
|
5 |
6.143 |
4.822 |
|||
|
6 |
7.288 |
5.721 |
|||
|
7 |
8.412 |
6.603 |
|||
|
8 |
9.515 |
7.469 |
|||
|
10 |
11.657 |
9.151 |
|||
|
7 |
70 |
4 |
8 |
5.570 |
4.372 |
|
5 |
6.875 |
5.397 |
|||
|
6 |
8.160 |
6.406 |
|||
|
7 |
9.424 |
7.398 |
|||
|
8 |
10.667 |
8.373 |
|||
|
7.5 |
75 |
5 |
9 |
7.412 |
5.818 |
|
6 |
8.797 |
6.905 |
|||
|
7 |
10.160 |
7.976 |
|||
|
8 |
11.503 |
9.030 |
|||
|
9 |
12.825 |
10.068 |
|||
|
10 |
14.126 |
11.089 |
|||
|
8 |
80 |
5 |
7.912 |
6.211 |
|
|
6 |
9.397 |
7.376 |
|||
|
7 |
10.860 |
8.525 |
|||
|
8 |
12.303 |
9.658 |
|||
|
9 |
13.725 |
10.774 |
|||
|
10 |
15.126 |
11.874 |
|||
