CBL-18 Marine Fan

CBL-18 Marine Fan

1. Structure

There are two structural types: typeⅠ(direct-coupling type) and typeⅡ( separate cabins type). The construction is non-sparking.
The structure of typeⅠis a motor direct coupling one. the impeller is mounted directly on the motor shaft, and the casting is fixed on the flange of the explosion-proof motor.
The type Ⅱ is a separate structure, the fan motor are put into different cabins, with a driving device, flexible couplings, and the driving device consists of bearings, bearing-box, shaft, brass rings, stuffing box. It can be oiled and measured the temperature. One side is fixed on the fan, and other side will be mounted on the bulkhead.
The fan may be made into horizontal or vertical, single-stage, single-drawing and airtight structure by the customer's requirements.

2. Features

Explosion-proof, safety and reliable in operation, small size, light weight, and low noise, well anti-corrosive, strongly capable of resisting swing, vibration and hocking.

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor
					Freq Hz	Power Kw		Type
						Type I	Type II	Type I	Type II
CBL-18	1200	810	635	2920	50	1.1	1.5	YB802-2H	YB90S-2H Y90S-2H
	1500	810	540
	1400	1165	910	3500	60
	1800	1165	775

Type

Type of the motor

A

A1

A2

A3

B

B1

B2

B3

D1

D2

D3

n₁*d₁

n₂*d₂

H

h

h₁

h₂

Type I

Type II

CBL-18

YB802-2H

YB90S-2H Y90S-2H

125

180

155

80

155

208

185

100

Ø243

Ø220

Ø190

8*Ø10

8*Ø10

358

80

132.5

111.5

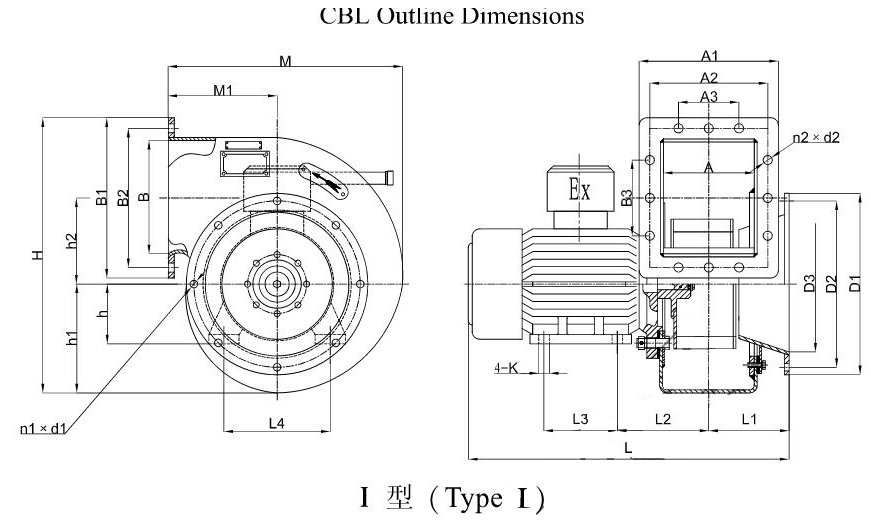

4. Outline Drawing:

5. Product Showing:
