Electric Fire Water Monitor

Electric Fire Water Monitor

Description:

Electric fire water monitor has two DC (direct current) drive control modes: wired control and wireless control. The operator can directly control the angle of water jetting from a long distance, so that to protect the safety of them. When it sprays water column, it can extinguish solid fire. When it sprays water mist, it can be used for cooling fire site and rescue. The electric fire water monitor is mainly made from stainless steel.

Product Superiority:

1. Remote control

2. Corrosion resistance

3. Large flow

Product Detail:

Model	Flow range (L/S)	Jetting range （≥m)	Rated pressure(Mpa)	Pitching angle (°)	Rotation angle (°)	Weight(≤kg)	Connecting flange
PSKD20	20	48	0.8	-30〜+70 or -70〜+70	0-360	25	DN100
PSKD30	30	55				30
PSKD40	40	60				30
PSKD50	50	65				45
PSKD60	60	70	1			45
PSKD70	70	75				45
PSKD80	80	85				45
PSKD100	100	90	1.2			55	DN150
PSKD120	120	95				55
PSKD150	150	100	1.4			105	DN200
PSKD180	180	105				105
PSKD200	200	110				105

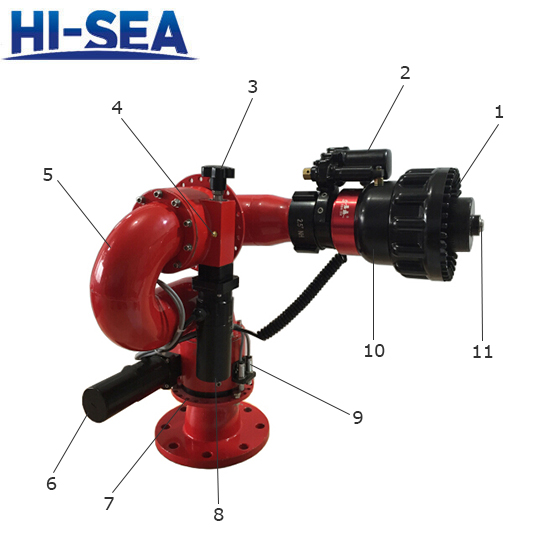

Structure of Electric Fire Water Monitor:

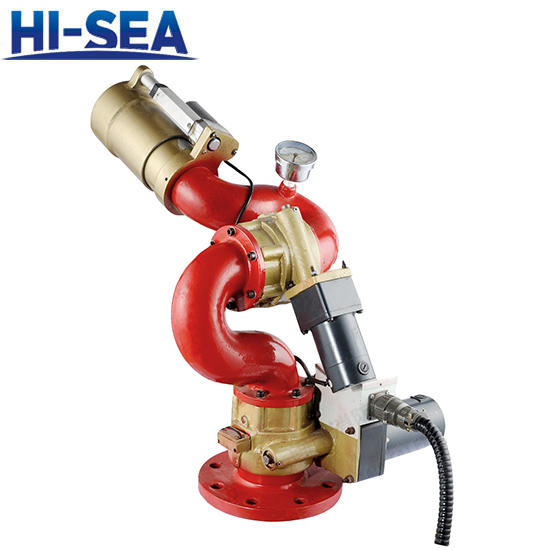

Picture 1 of Electric Fire Water Monitor:

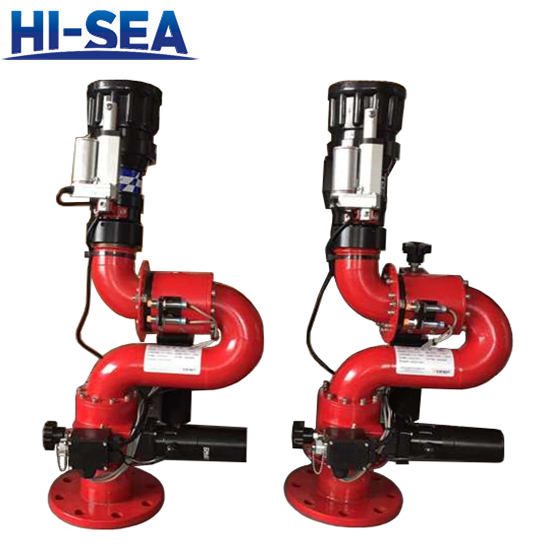

Picture 2 of Electric Fire Water Monitor:
