Electric Portable Fire Monitor

Electric Portable Fire Monitor

Description:

Electric portable fire monitor has two types: water type (PSKDY) and water foam dual type (PLKDY). The two types both have oriented and oscillating jetting. PSKDY can spray water column and water mist. PLKDY can spray foam. This fire monitor is the first to adopt the new brushless dc motor to drive horizontal and vertical rotation. It is equipped with high quality lithium battery, HS (Hall sensor) and high-precision potentiometer.

Product Superiority:

1. Self-oscillating

2. Movable

3. Multi-functional

Product Detail:

PSKDY:

Model	Flow range(L/S)	Jetting range （≥m)	Working pressure(Mpa)	Pitching angle(°)	Rotation angle(°)	Voltage	Remote control distance(≥m)	Weight(≤kg)	Connecting way
PSKDY30	30	55	0.8	+30～＋70	±90	24V/DC	150	30	KY80 or KYK80
PSKDY40	40	60
PSKDY50	50	65
PSKDY60	60	70	1
PSKDY80	80	85	1.1

PLKDY:

Model	Flow range(L/S)	Jetting range （≥m)		Working pressure (Mpa)	Pitching angle(°)	Rotation angle(°)	Voltage	Remote control distance(≥m)	Weight(≤kg)	Connecting way
		Water	Foam
PLKDY32	32	55	48	0.8	+30～＋70	±90	24V/DC	150	30	KY80 or KYK80
PLKDY48	48	70	60
PLKDY60	60	75	70

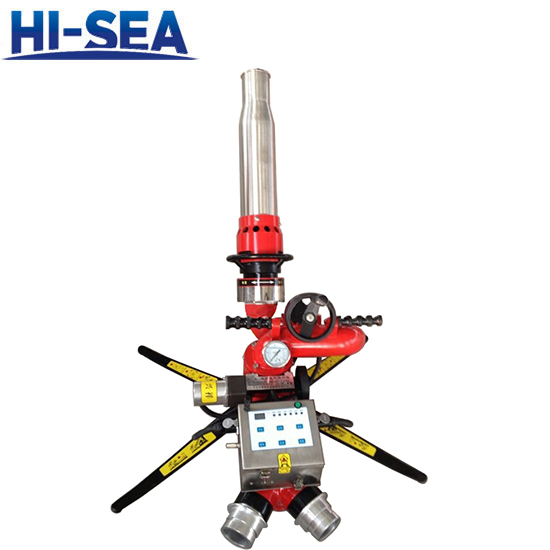

Photo 1 of PSKDY:

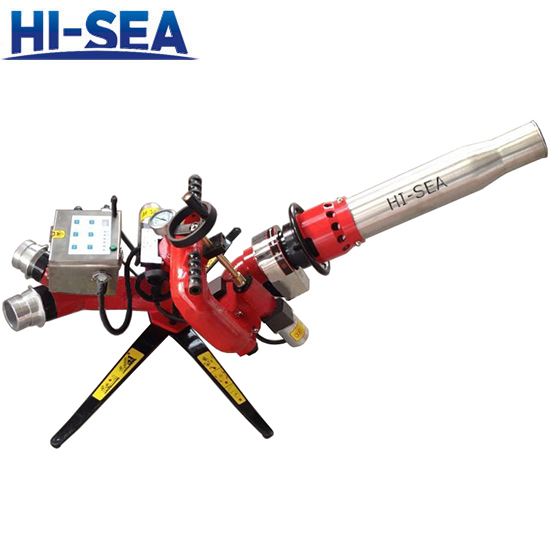

Photo 2 of PSKDY:

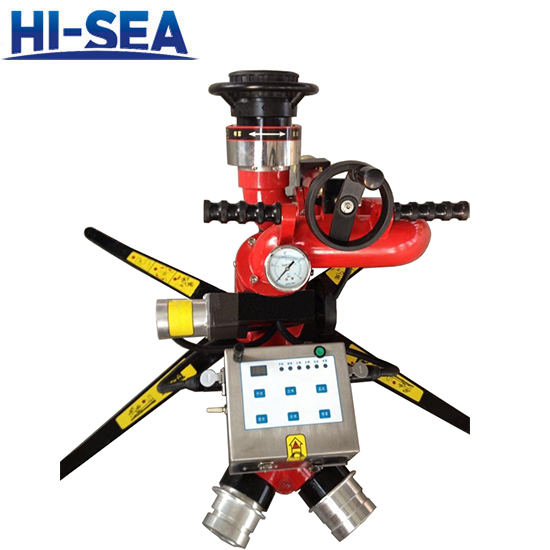

Photo 1 of PLKDY:

Photo 2 of PLKDY:
