Pressure Vacuum Valve
Pressure Vacuum Valve
1. Application
The pressure vacuum valve generally used in the relief system of the oil tanker and chemical tanker according to the current regulations:IMO and IBC. The purpose of the pressure vacuum valve is to provide automatic control of pressure differentials during liquid cargo ship loading, voyage, ballasting and de-ballasting without any manual operation, also, it provides auto-protection against fire and explosions on desk.
2. Material
valve body: cast steel
valve seat: stainless steel 0Cr18Ni9 SUS304
flame screen: stainless steel 00Cr17Ni14Mo2 SUS316L
We can according to customer demand for customized the material.
3. Nominal Size & Pressure
diameter：DN50—DN250
pressure:(1) oil tanker:-3.5Kpa to 14Kpa (2) chemical tanker:-3.5Kpa to 20Kpa.
4. Features
(1). Variable application for usable installation vent pipe length and flow capacity range.
(2). Reliable operations reduce vapor losses.
5. Specification(mm)|
Serial No. |
DN |
D2 |
D1 |
D |
L |
H |
Flange Hole |
|
1 |
50 |
90 |
110 |
140 |
255 |
485 |
4xφ14 |
|
2 |
65 |
110 |
130 |
160 |
255 |
485 |
4xφ14 |
|
3 |
80 |
128 |
150 |
190 |
285 |
535 |
4xφ18 |
|
4 |
100 |
148 |
170 |
210 |
285 |
565 |
4xφ18 |
|
5 |
125 |
178 |
200 |
240 |
380 |
665 |
8xφ18 |
|
6 |
150 |
202 |
225 |
265 |
385 |
710 |
8xφ18 |
|
7 |
200 |
268 |
295 |
340 |
455 |
850 |
8xφ18 |
|
8 |
250 |
320 |
350 |
395 |
460 |
860 |
12xφ22 |
6. IACS Certificate: ABS, BV, CCS, LR, RINA can be provided by us.

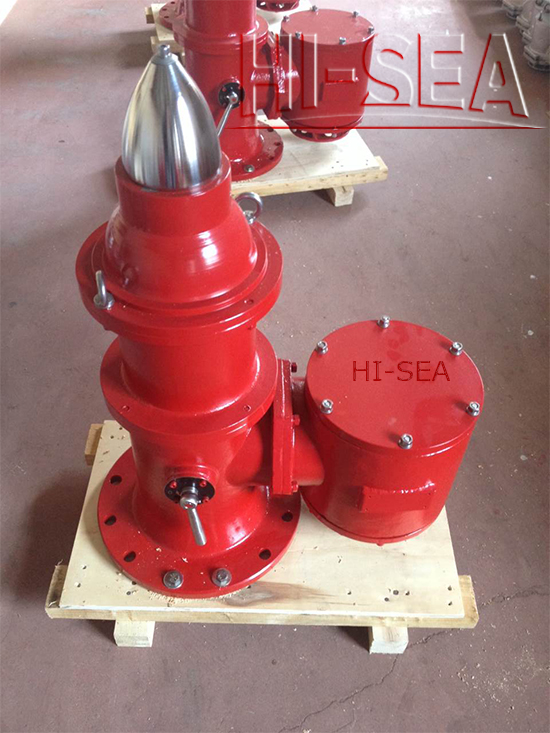

7. The product of Pressure Vacuum Valve in factory
