Home > Load Binder

Ratchet Load Binders with Jaw&Jaw

Ratchet Load Binders with Jaw&Jaw

Product Characteristic:

Turnbuckle is made of seamless steel pipe, with forging processing technology (cold extrusion), Q345B (16Mn) or Q235 steel.
Two forged clevis jaw is made of carbon steel with heat treatment, it can reach 8.8 grade strength thread ends.45 steel.
Ratchet wrench with high quality and durability, to operate easily and two shift direction. One more thing is to extend the handle with your special needs.
RTD-30 working load limit is 12 ton, we test 50 ton of breaking load limit, our ratchet load binder turnbuckle with jaw jaw still works well.

Product Specification:

Size(in)	Breaking load(ibs)	Dimension											Weight
Size(in)	Breaking load(ibs)	A(max)	B	C	D	E	F	G	H	I	J	K	Weight
13/8	85000	672	560.5	75	35	24	92.5	108	53	60	27	65	16.53
13/4	133600	850.9	558.8	123.8	60.3	55	111	108	53	44.45	44.45	88.45	27.56

Drawing of Ratchet Load Binders with Jaw & Jaw:

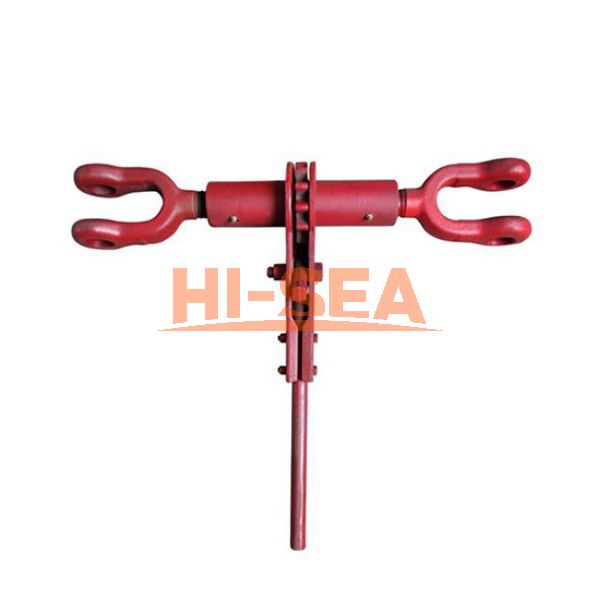

Photo One of Ratchet Load Binders with Jaw & Jaw:

Photo Two of Ratchet Load Binders with Jaw & Jaw:
