FA-SPYC Shipboard Power Cable
FA-SPYC 0.6/1kV Shipboard Power Cable:
Description:Flame-Retardant,Single core,EP rubber insulated,PVC sheathed and steel wire braided Shipboard Power cable 600/1000V.

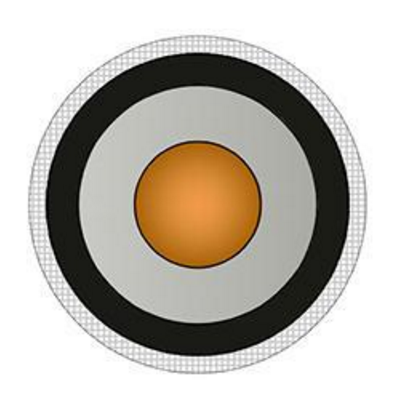

Cable Construction:
1.Conductor: Tinned Annealed Stranded Copper,Class2 according to IEC60228
2.Insulation: 85°C (EPR),Ethylene Propylene Rubber
3.Sheath:(PVC),Polyvinyl Chloride
4.Armor:Galvanized Steel Wire Braid
Standard:
JIS C 3410-1999 IEC 60092-350 IEC 60332-1 IEC 60332-3 Cat.AF(for FA-type)
Applications:
For fixed installations on ships and offshore-units in all locations.
(FA-)SPYC, SPYCB Specifications:
| Conductor | Thick. of insulation | Thick. of bedding | Dia. over bedding | Dia. of armor | (FA-) SPYC, SPYCB | ||||
| Size | Construction | O.D | Nominal overall dia. | Tolerance | Cable weight (Approx.) | ||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
|
1.5 |
7/0.53 |
1.59 |
1.0 |
1.0 |
5.9 |
0.3 |
7.2 |
0.4 |
100 |
|
2.5 |
7/0.67 |
2.01 |
1.0 |
1.0 |
6.3 |
0.3 |
7.8 |
0.4 |
120 |
|
4 |
7/0.85 |
2.55 |
1.0 |
1.0 |
6.9 |
0.3 |
8.2 |
0.4 |
140 |
|
6 |
7/1.04 |
3.12 |
1.0 |
1.0 |
7.4 |
0.3 |
8.7 |
0.4 |
170 |
|
10 |
7/1.35 |
4.05 |
1.0 |
1.1 |
8.6 |
0.3 |
9.9 |
0.4 |
225 |
|
16 |
7/1.70 |
5.1 |
1.0 |
1.1 |
9.6 |
0.3 |
10.9 |
0.4 |
300 |
|
25 |
7/2.14 |
6.42 |
1.2 |
1.2 |
11.5 |
0.3 |
12.8 |
0.5 |
425 |
|
35 |
7/2.52 |
7.56 |
1.2 |
1.2 |
12.7 |
0.3 |
14.0 |
0.6 |
535 |
|
50 |
19/1.78 |
8.9 |
1.4 |
1.3 |
14.6 |
0.3 |
15.9 |
0.6 |
695 |
|
70 |
19/2.14 |
10.7 |
1.6 |
1.4 |
17.2 |
0.3 |
18.5 |
0.7 |
960 |
|
95 |
19/2.52 |
12.6 |
1.6 |
1.5 |
19.3 |
0.3 |
20.6 |
0.8 |
1250 |
|
120 |
37/2.03 |
14.2 |
1.6 |
1.5 |
20.9 |
0.3 |
22.2 |
0.9 |
1510 |
|
150 |
37/2.25 |
15.8 |
1.8 |
1.6 |
23.1 |
0.3 |
24.4 |
1.0 |
1830 |
|
185 |
37/2.52 |
17.6 |
2.0 |
1.7 |
25.5 |
0.3 |
26.8 |
1.1 |
2250 |
|
240 |
61/2.25 |
20.3 |
2.2 |
1.8 |
28.8 |
0.3 |
30.1 |
1.2 |
2910 |
|
300 |
61/2.52 |
22..7 |
2.4 |
1.9 |
31.8 |
0.4 |
33.6 |
1.3 |
3680 |
