AQ43 Shipbuilding Steel Plate
The steel grade AB/AQ43 is ABS grade AB/AQ43, which is equivalent with CCSAH420, BVAH420, NV A420, GL-A420, KRAH43, LRAH42, KA43, and RINA-A420. Regarding to heat treatment, AB/AQ43 shipbuilding steel plate is quenched and tempered to improve steel strength in yield and tensile points.AQ43 is a kind of super high tensile strength marine steel plate with the tensile strength at 420MPa. It is mainly used in offshore drilling platform, shipping marine engineering and hull Structural project.
We also can supply steel plate of customized sizes as your request. If you have any interest, please feel free to contact us.
Stock Sizes
Size: Thick: 8mm-180mm, width: 1500mm-4000mm, length: 3000mm-18000mm
Tolerance: The thickness tolerance is -+0.03mm
Specifications of ABS AQ43 Shipbuilding Steel Plate
|
Project |
Data |
|
|
Steel Grade |
AB/AQ43 |
|
|
Chemical Composition |
C % |
≦0.21 |
|
Si % |
≦0.55 |
|
|
Mn % |
≦1.70 |
|
|
P % |
≦0.030 |
|
|
S % |
≦0.030 |
|
|
N % |
≦0.020 |
|
|
Mechanical Property |
Upper Yield strength (ReH/MPa) |
≧420 |
|
Tensile Strength (Rm/MPa) |
530~680 |
|
|
Elongation after Fracture (A/%) |
≧18 |
|
|
Charpy V-Notch Impact Test |
Longitudinal (KV2/J) |
≧42 |
|
Transverse (KV2/J) |
≧28 |
|
|
Test Temperature (℃) |
0 |
|
|
Heat Treatment |
TM/QT/TM+T |
|
|
Plate Size |
Thickness (mm) |
6~350 |
|
Width (mm) |
900~4850 |
|
|
Length (mm) |
3000~25000 |
|
|
Note |
It is available to customize the size of steel plate. |
|

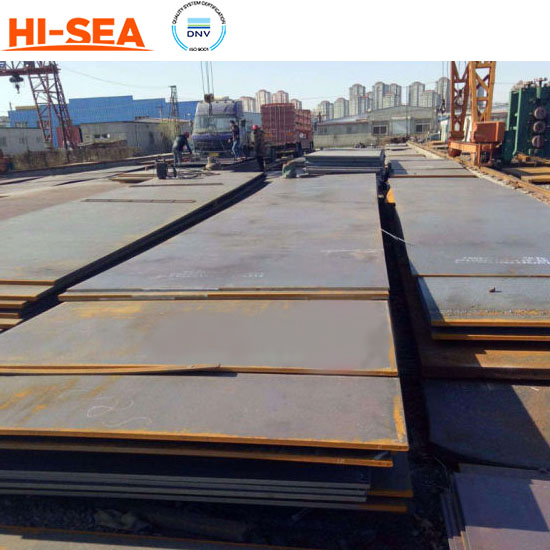

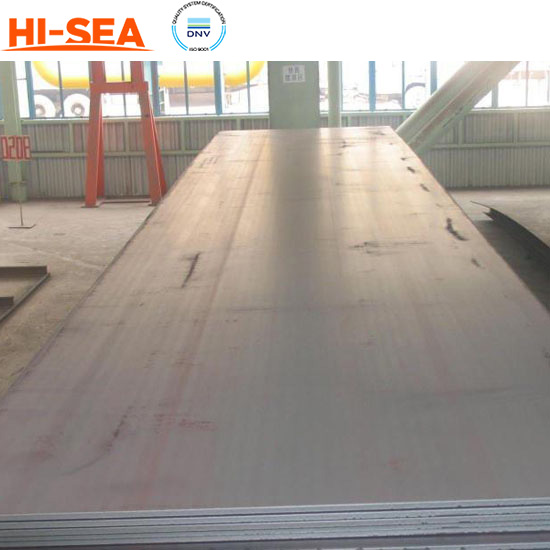

Photos of AQ43 Shipbuilding Steel Plate：
