70KN Marine Electric Capstan
Application
70KN marine Capstan refers to the capstan with a warping head installed on deck of a ship and mainly used for ship anchoring, mooring, pulling and so on. According to shaft center line orientation, there are electric vertical capstan and electric horizontal capstan. The capstan mainly consists of motor, reducer, capstan head, brake and so on. Marine electric capstan is driven by electric motor.
Material
Cast steel, 316L stainless steel.
Advantages and Features
1. Compact structure, high strength;
2. Local control and remote control;
3. Easy for installation, maintenance, lubrication and inspection;
4. Corrosion resistance, long lifespan;
5. With or without gypsy;
6. Reliable service, high security;
7. Can be customized according to your requirements;
8. Manual or hydraulic brake and clutch;
9. Vertical or horizontal;
10. Approved by BV, LR, RINA...

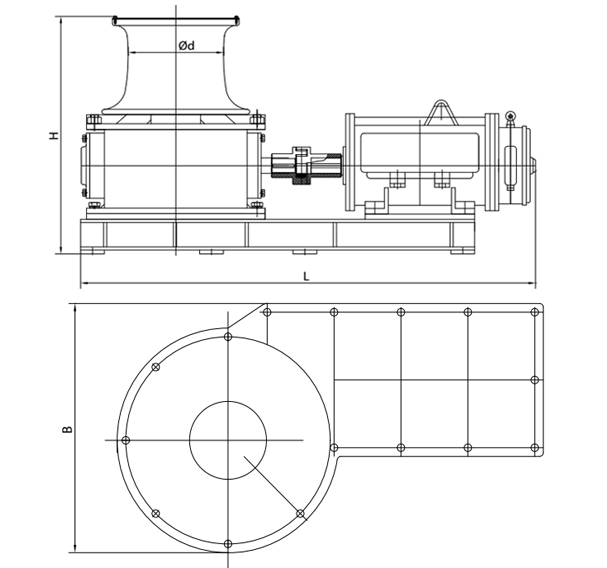

Drawing of 70KN Marine Electric Capstan
| Working Load（KN） |
Nom.Speed ≥（m/min） |
Capstan Dia(mm) |
Wire Dia（mm） |
Power （KW） |
Speed （r/min） |
| 70 | 15 | φ450 | φ24 | 30/30/22 | 1400/665/300 |
